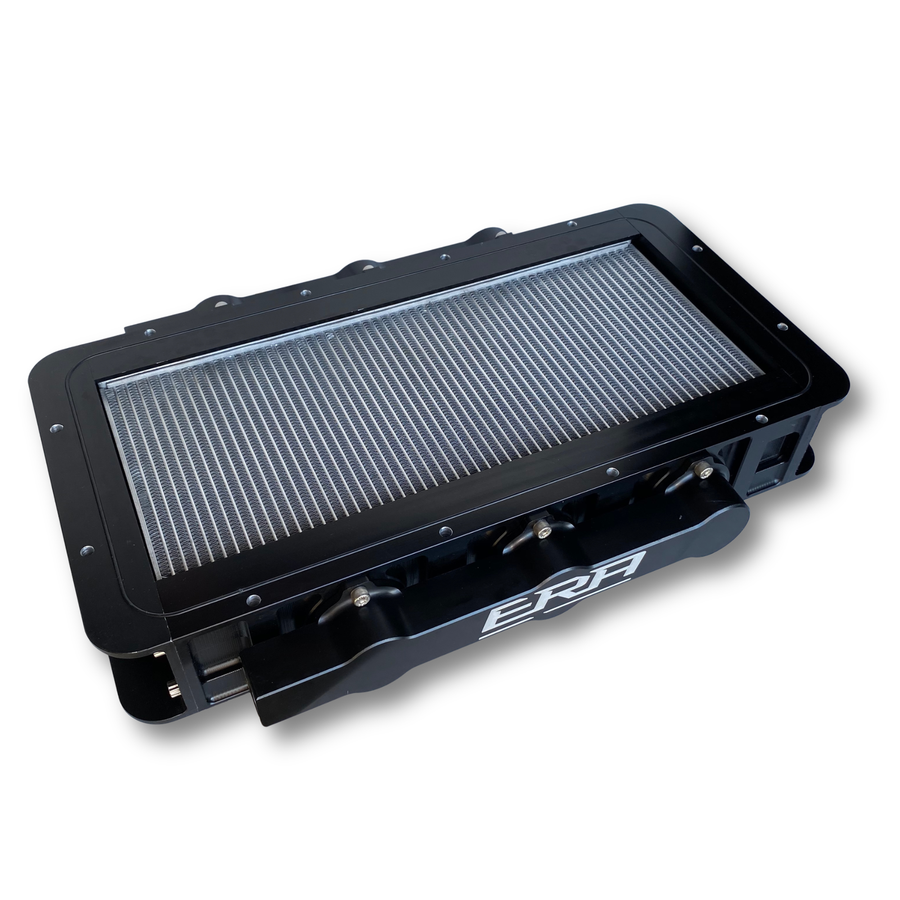

The ERA Water to Air Intercooler delivers superior thermal efficiency for high-performance applications.
Engineered as a direct alternative to conventional air-to-air designs, this unit integrates seamlessly with Holley Hi & Low-Ram Manifolds.
The core features a full floating design which has no welding to the main case housing which can cause cracking from expansion and contracting and is housed in precision 6061 billet aluminum, available in machine finish or anodised satin black.
Water flows through the highly efficient tube and fin construction via optimized end tank pathways, maximizing heat exchange with minimal pressure drop.
Proven performance exceeds 2000 hp without compromise.
Includes O-ring seal.
Dimensions & Specifications
Overall: 18.74" x 8.03" x 2.95"
Core: 15.51" x 6.54" x 2.17"
Inlet / Outlet Fitting : -12 ORB / Thread : 1 1/16 UN
Note: High demand may result in limited availability. Please pre-order if out of stock.
